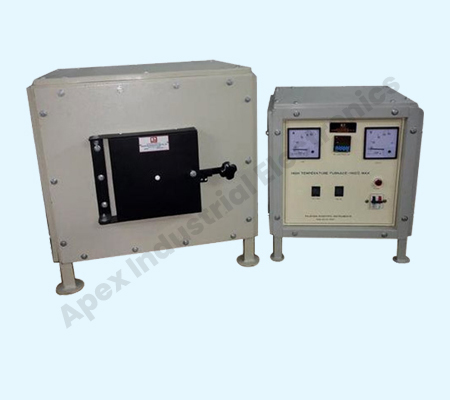

Furnace (High Temperature)
Outer Body Double Walled M.S. reinforced with iron angles duly painted chamber.
Heating is done by silicon carbide rods ( Maximum Temperature of Silicon carbide rod is upto 1600⁰C) duly controlled by accurate step down transformer
Temperature controlled by Digital Temperature controller
Complete with PT/PT/RH thermocouple.
Maximum Temperature range up to 1600ºC but maximum continuous working temperature 1450ºC..
| SIZES : |
|---|
| 100 x 100 x 225 mm |
| 125 x 125 x 250 mm |
| 150 x 150 x 300 mm |
| 125 x 175 x 475 mm |
| 175 x 175 x 475 mm |
| 200 x 200 x 300 mm |
Optional
- Microprocessor Based PID Controller
- Programmable Controller with ramp and soak facility
We Can Design Any Size According To Our Customer Requirements.
