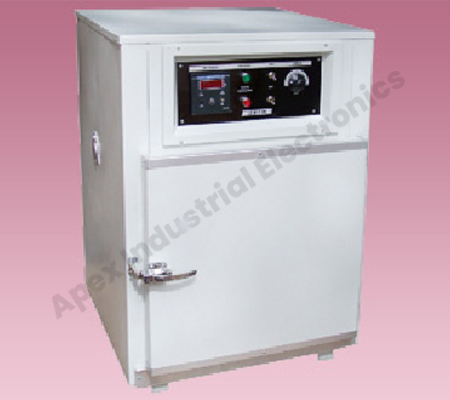

Dry Heat Sterilizer
Dry Heat Sterilizer are designed to suit various applications in growing field of Medical ,Research Laboratories of Hospitals for sterilization. Suitable to work on 220/230V AC supply.
CONSTRUCTION:- Double walled construction with inside Stainless Steel Chamber having 60-70mm glass wool insulation & outer wall is made from MS with powder coated. Door is fitted with heavy chrome plated hinges & spring & roller type latch catch. Provided with adjustable steel wire mesh tray for better air circulation.
TEMPERATURE RANGE: Ambient to 250ºC ± 1º C. Temperature controlled by MICROPROCESSOR based Digital Temperature Controller or By Hydraulic Thermostat.
HEATING: Heating elements are made from high grade (Kanthal ISI) Resistance wire. Heaters are fitted/wound along all sides & bottom. Complete with 2 pilot lamp cord & plug pin etc.
| AVAILABLE SIZE | ||
|---|---|---|
| SIZE INSIDE CHAMBER | ||
| W X D X H | Ltrs.(App.) | No. Of Trays |
| 300 x 300 x 300 mm (12” X 12”X 12”) | 28 | 2 |
| 355 x 355 x 355 mm (14” X 14”X 14”) | 45 | 2 |
| 450 x 450 x 450 mm (18” X 18”X 18”) | 95 | 2 |
| 450 x 450 x 600 mm (18” X 18”X 24”) | 128 | 2 |
| 600 x 600 x 600 mm (24” X 24”X 24”) | 227 | 2 |
| 600 x 600 x 900 mm (24” X 24”X 36”) | 340 | 2 |
Optional
- Automatic Holding Timer & Alarm
- Circulation Fan
We Can Design Any Size According To Our Customer Requirements.
