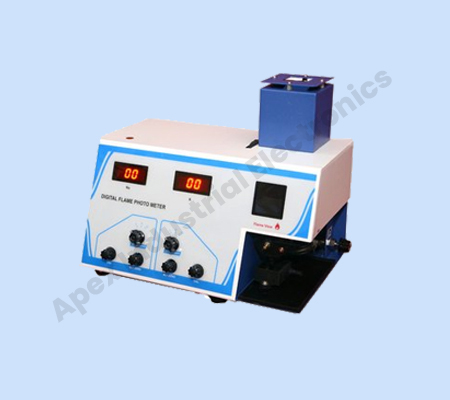

Digital Clinical Flame Photometer
Technical Specification:-
| Range | General | Serum | Urine |
|---|---|---|---|
| Na: 0-100 ppm Upto 250 meq/l, 1: 100 dil K: 0-100 ppm Upto 250 meq/l, 1: 100 dil Ca: 0-100 ppm Upto 250 meq/l, 1: 100 dil Li: 0-100 ppm Upto 250 meq/l, 1: 100 dil |
Na:- 0-200 1:100 dil K: 0-10 1: 100 dil ----- ------. Li: 0-2 1: 5 dil |
Na: 0-250 1: 100 dil K: 0-100 1: 100 dil Ca: 0-10 1:2 dil ------ -------- |
| Sensitivity | Na: 0.5 ppm, K: 0.5 ppm, Ca: 15 ppm (Optional), Li: 0.5 ppm (Optional) |
| Readout | Dual 2.5 Digit Bright Red LED Display |
| Accuracy | +/- 2 % upto 100 meq/l +/- 5% above 100 meq/l |
| Ignition System | Auto Ignition System |
| Dimension | 385X245X200 mm (LXBXH) |
| Measurement System | Measures one Eleent at a time |
| Repeatability | +/- 2 Counts |
| Detector | Silicon Photodiode |
| Filters | Narrow Band Interference Glass Filters |
| Nebulizer | Black Bakelite, Axial Flow Type |
| Flame System | LPG and Dry Oil Free Air |
| Warm up Time | 10 Minutes |
| Power Supply | 230V, +/-10 % AC, 50 Hz |
| Weight | 7.5 Kg (APPROX) |
