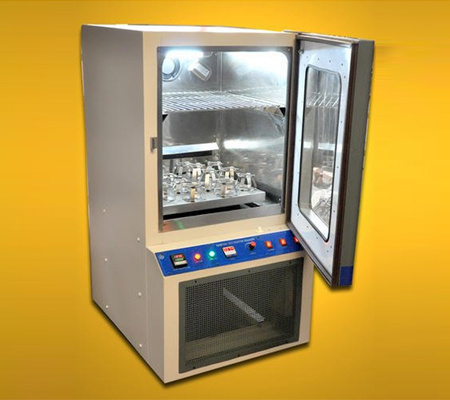

Bod Incubator Cum Shaker

Castor wheel mounted cabinet is double walled with inner chamber of stainless steel and outer casing of M.S. sheet duly painted. The gap of 75mm between the outer and the inner wall is filled with special grade glass wool to prevent thermal losses. Double walled back of the unit is fitted with two air circulation fans for maintaining the temperature uniformally throughout the chamber. The inner chamber is ribbed for placement of shelves at desired heights. full view inner glass door permits inspection of specimens, without disturbing the same. Lock and key arrangement is provided in the double walled outer door. Unit is fitted with door operated illumination lamp inside the chamber. Refrigeration unit is formed by hermetically sealed compressor and the cooling coils are distributed all round the chamber and lie in the air circulation path.

With standard shaker platform to accommodate 16 flasks of 500ml capacity & electronic RPM meter

RANGE : . Temp range (+5 to 50⁰C)

Specially designed to hold :

• (i) To Hold 9 flasks of 250 ml OR Mix (Size of platform 450 x 450 mm)
• (ii) To Hold 12 flasks of 250 ml OR Mix (Size of platform 600 x 600 mm)

OPTIONALs

• Cyclic Timer
• Digital RPM Indicator
• Microprocessor Based PID Controller

We Can Design Any Size According To Our Customer Requirements.
